Information-Driven Design: Distributing Design Criteria via Smartsheet – Part 1

For companies doing rollout development of their concepts, a big part of making sure buildings and spaces get designed right is making sure all of their external consultants are working off the latest and greatest design criteria. Having been on both sides of this important knowledge transfer, I’m here to tell you that it’s easier than ever to do this well thanks to technology.

I love this topic. It’s all about implementation. You can have the coolest design with the best content for your architects and engineers, but if you can’t organize all that information in a way that makes it easy for those outside of your organization to use, you lost.

To make sure we don’t take an L, we’re leveraging information-driven design workflows to take the design criteria for a concept from the organization’s design department out to their consulting architects and engineers. The heart of this workflow will be Smartsheet, a web-based database centered around powerful interactive spreadsheets.

Step 1: Organize the Content into Schedules

The first step is for the company doing the rollout development to organize their BIM content (Families, Objects, whatever you want to call them) into categories related to how that content would be scheduled in construction documents. Depending on the content, you’ll want to organize it by vendor, procurement or installation responsibilities, purpose, or something else. This exercise should allow you to identify common scheduling characteristics (manufacturer, model, finish, utility connection types, etc.) which will become the columns of the schedule chart. The rows of the schedule chart will be each individual piece of content. Now you’ll know how many schedules you need, what’s in each schedule, and how each schedule charts out its information.

Step 2: Build the Schedules

Next, we’ll begin building the schedules from Step 1 in Smartsheet. Each schedule will be its own sheet. The sheets can be organized within Smartsheet into folders which will come in handy for assigning access privileges later on. First, set up columns based on the scheduling characteristics determined in Step 1 then begin adding each piece of content in the rows.

Your vendors can help populate these schedules accurately with current information if you want to give them access to the sheets. This is key to making all of the information accurate, especially once everything is up and running as we’ll see later on.

The individual files for the BIM content as well as any product data get attached to the row in the schedule to which they belong. Smartsheet has version tracking so if the BIM content needs to be updated later on just upload a new file with the same filename to preserve history. This version tracking also applies to the contents of the cells in the schedule. Having a history to look back on is super helpful to both the organization and the external consultants once everything has been up and running for a while.

A completed schedule might look something like this…

This is what schedules look like in Smartsheet

Step 3: Grant Access

Once completed and populated with the initial content, each schedule will also leverage Smartsheet’s push notifications. You’ll set up the sheets to push notify everyone who needs to be made aware each time there’s a change made. Those people will get automated emails from Smartsheet highlighting the changes so they can take action and update their BIMs, and in turn the documentation created from those BIMs.

To make notifications work, you’ll first step up all of the users who need access to the sheets of schedules and BIM content. These are your external consultants and vendors. People can have read and/or write access to the sheets depending on who they are and what their needs may be. You can further organize users into groups based on their companies and/or level of access to make it easier to assign people and update them later on as people come and go from these external companies. As you set up users, Smartsheet pushes out email invitations to get set up in your company’s Smartsheet workspace.

Step 4: Set Up Sheets for Other Design Criteria

Smartsheet is useful for other types of design criteria that aren’t necessarily schedule-based. For example, prototypical details for construction documents can be disseminated through sheets with version-tracking and push notifications as well. Here’s an example of that…

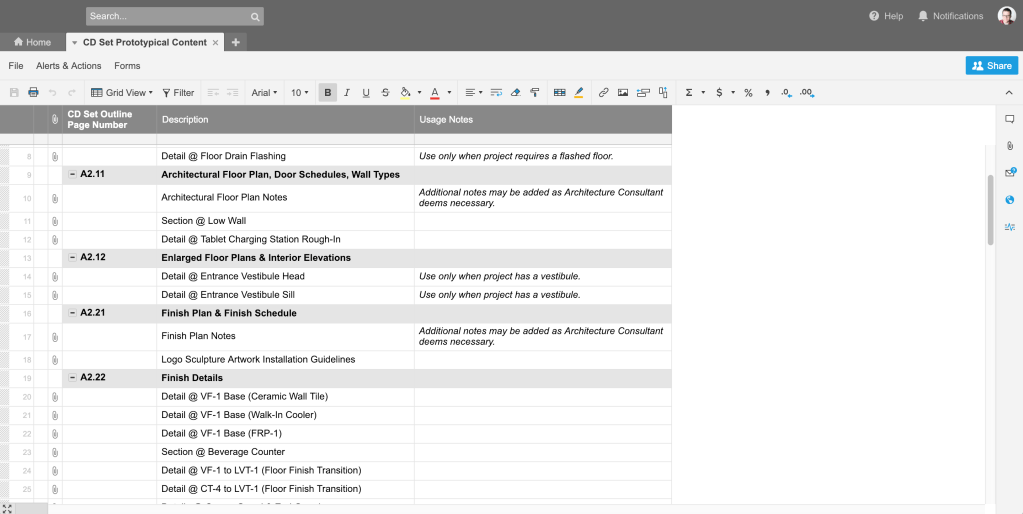

You can organize prototypical detail content in Smartsheet too

Another type sheet you can make is instructional, where you explain to external consultants how to handle the design criteria. Here’s an example of an instructional sheet explaining distribution of deliverables created from the design criteria. Again, push notifications allow people to be made aware of changes in an automated fashion.

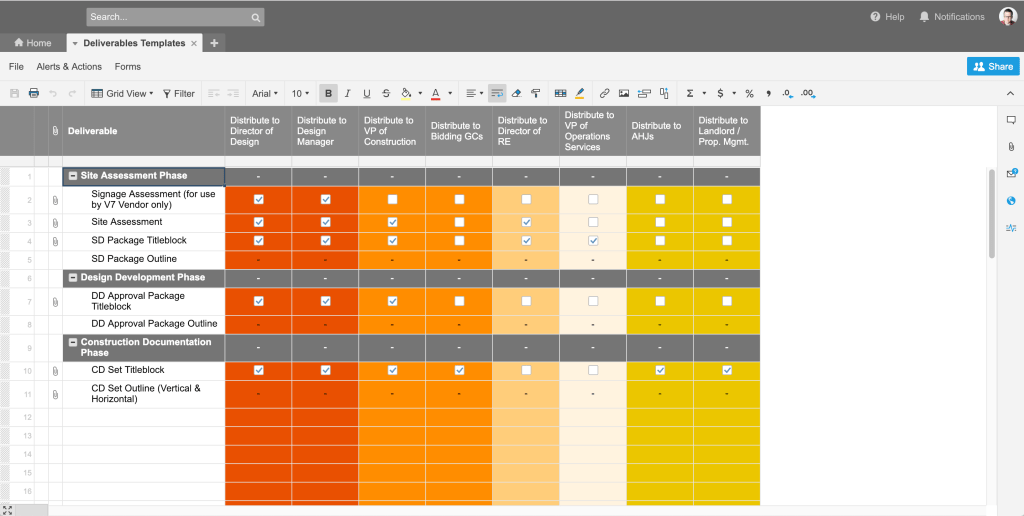

Using Smartsheet to explain distribution requirements for design deliverables

These non-schedule sheets won’t interact with the consultants’ BIM authoring tools in the ways we’ll cover in Part 2, but they are still a great way to leverage technology to distribute design criteria.

End Users Download & Create

With everything up and running in Smartsheet, your external consultants can visit the sheets to begin downloading BIM content, product data, and exporting sheets. In Part 2, we’ll look at how these downloads and exports from Smartsheet drive information in the BIM and eliminate the coordination headaches common to every other method of distributing design criteria.
